Template: Approval

This section specifies the template Approval.

The specification comprises a SysML Block that represents the template and an associated Parametric Diagram that defines the templates and PLCS PSMTemplate objects instantiated by the Approval template.

The specification comprises the following sections:

Section Description provides a description of the template;
Section Template Block specifies the SysML Block that represents the template;
Section Template Properties specifies the properties, i.e. the SysML Part, Reference and Value properties of the templates SysML Block;
Section Template Output Ports specifies the SysML Output Ports of the templates SysML Block. These bind to the templates and PLCS PSM objects instantiated by the Approval template as described in section Template Parametric Diagram;
Section Template Constraints specifies the constraints on PLCS PSMTemplate objects instantiated by the Approval template;
Section Template Parametric Diagram specifies the templates and PLCS PSMTemplate objects instantiated by the Approval template;
Section Instantiated blocks specifies the templates and PLCS PSMTemplate objects instantiated by the Approval template and bound to private parts of the template;
Section Default instances species the instances that have been instantiated in the template. These are used to set the default value of blocks.
Section Constraint blocks identifies the constraint blocks that have been specified in this template;
Section Example data provides example XML data sets that have been instantiated in accordance with this template.

NOTE An explanation of a template and its specification is provided in the Template overview

Description

The Approval template describes how to represent a formal record of the fact that items fullfil agreed criteria.

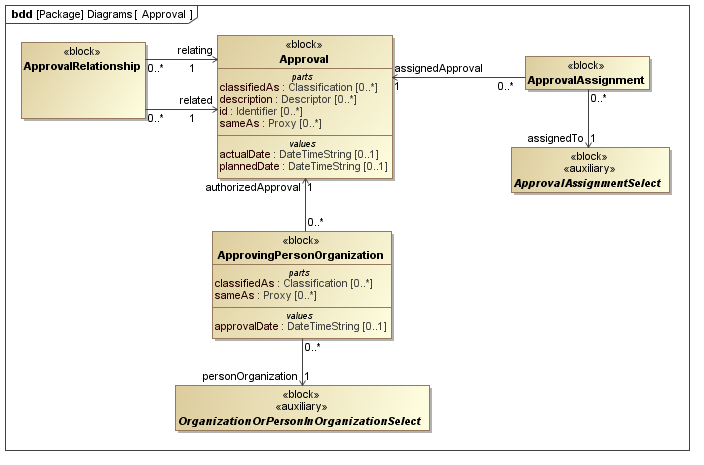

The SysML Block Definition diagram in Figure 1 shows how an Approval is represented in the PLCS PSM.

../../../../../data/PLCS/psm_model/images/SysML_Block_Definition_Diagram__Diagrams__Approval.png

Figure 1 - Approval model

Related Templates

No templates have been explicitly defined as being related to the Approval template.

NOTE The Approval template may make reference to other templates as part of the Parametric Diagram. These are not listed here.

Template Block

Figure 2 shows the SysML Block that represents the template. The Block is an abstraction representing a pattern of templates and PLCS PSMTemplate objects.

The properties, i.e. the SysML Block Part, Reference and Value properties, of the template's SysML Block are described in the Template Properties section.

The output ports shown on the template's SysML Block are described in the template output ports section.

The SysML Parametric diagrams for the template Block are shown in template parametric diagram section.

Figure 2 - Template block definition diagram for Approval

Template Properties

The following SysML Part, Reference, and Value properties are defined for this template:

References:

approvedItems [0..*] (Block: Ap239Ap233Psm:ApprovalAssignmentSelect)

the items concerned by the approval

reasonForApproval [0..*] (Block: Ap239Ap233Psm:JustificationSupportAssignmentSelect)

the justification for the approval

approvingPersOrOrg [0..*] (Block: Ap239Ap233Psm:OrganizationOrPersonInOrganizationSelect)

the person or organization that performed the approval.

Parts:

ids [0..*] (Template: OASIS:Identification)

The collection of identifiers of the approval.

The reference data used in Template: OASIS:Identification is restricted as follows:

RDL constraint 1:

The id must be classified as an Approval_identification_code or a subclass thereof.

The reference data for:

OASIS:Identification.role -> ExternalOwlClass.class

is restricted to the following class or a subclass:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Approval_identification_code

descriptions [0..*] (Template: OASIS:Descriptor)

the descriptions of the approval.

status [0..1] (Template: OASIS:StateAssertion)

the status of the approval.

The reference data used in Template: OASIS:StateAssertion is restricted as follows:

RDL constraint 1:

The status is represented subclasses of State_of_approval.

The reference data for:

OASIS:StateAssertion.sameAs -> ExternalOwlObject.individual

is restricted to the following class or a subclass:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#State_of_approval

names [0..*] (Template: OASIS:Name)

The names of the approval.

classifications [0..*] (Template: OASIS:Classifier)

The classification of the approval.

The reference data used in Template: OASIS:Classifier is restricted as follows:

RDL constraint 1:

The reference data for:

OASIS:Classifier.class -> ExternalOwlClass.class

is restricted to the following class or a subclass:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/plcs/plcs-psm/refdata/plcs-psm#Approval

Values:

validDate [0..1] (Block: Ap239Ap233Psm:DateTimeString)

the date when the approval become valid.

The following constraint, normally a uniqueness constraint, is applicable when instantiating the DateTimeString:

rule.Ap239Ap233Psm.ExternalOwlClass.ur1

Constraint: XSDDATETIME

Specification: (OCL2.0)

self.matches('[0-9]{4}-[0-9]{2}-[0-9]{2}T[0-9]{2}:[0-9]{2}:[0-9]{2}Z')

Template Output Ports

The following output ports are defined for this template:

psmApproval (Block: Ap239Ap233Psm:Approval)

Enables the Block: Ap239Ap233Psm:Approval instantiated by this template to be referenced when the template is used.

Template constraints

There are no constraints defined for this template.

Template Parametric diagram

This section describes the template's Parametric Diagram. The diagram details the pattern of templates and PLCS PSMTemplate objects that are required to represent the template Approval.

The public properties, i.e. those visible in the template's SysML block (See Figure 2) are shown on the left of a Parametric Diagram.

NOTE Restrictions on the reference data to be set on the public properties is defined in the Template Properties section.

The output ports are shown on the right of a Parametric Diagram.

PLCS PSM objects are shaded khaki and Templates are shaded light green in a Parametric Diagram.

Figure 3 - Parametric diagram for Approval

Instantiated Blocks

The following blocks are instantiated by this template and bound to private parts of the template as shown in the Parametric Diagram section:

Private Part Property:approval [1] (Block: Ap239Ap233Psm:Approval)

Private Part Property:combNameAndDesc [0..1] (Constraint Block: OASIS:Name:CombineNamesAndDescriptors)

Private Part Property:approvalAsg [0..*] (Block: Ap239Ap233Psm:ApprovalAssignment)

Private Part Property:stateAsgn [0..1] (Block: Ap239Ap233Psm:StateAssignment)

Private Part Property:justification [0..*] (Template: OASIS:Justification)

Private Part Property:approvingPerOrg [0..*] (Block: Ap239Ap233Psm:ApprovingPersonOrganization)

Default instances

There are no instances that have been instantiated in this template.

Constraint Blocks

There are no constraint blocks defined in this template.

Example data

No example data sets have been provided for this Template.
