Template: RealizedPart

This section specifies the template RealizedPart.

The specification comprises a SysML Block that represents the template and an associated Parametric Diagram that defines the templates and PLCS PSM objects instantiated by the RealizedPart template.

The specification comprises the following sections:

Section Description provides a description of the template;
Section Template Block specifies the SysML Block that represents the template;
Section Template Properties specifies the properties, i.e. the Part, Reference and Value properties of the templates SysML Block;
Section Template Output Ports specifies the Output Ports of the templates SysML Block. These bind to the templates and PLCS PSM objects instantiated by the RealizedPart template as described in section Template Parametric Diagram;
Section Template Constraints specifies the constraints on PLCS PSM objects instantiated by the RealizedPart template;
Section Template Parametric Diagram specifies the templates and PLCS PSM objects instantiated by the RealizedPart template;
Section Instantiated blocks specifies the templates and PLCS PSM objects instantiated by the RealizedPart template and bound to private parts of the template;
Section Default instances species the instances that have been instantiated in the template. These are used to set the default value of blocks.
Section Constraint blocks identifies the constraint blocks that have been specified in this template;
Section Example data provides example XML data sets that have been instantiated in accordance with this template.

NOTE An explanation of a template and its specification is provided in the Template overview

Description

The RealizedPart template describes how to represent a real physical product, an artifact, using the ProductAsRealized entity.

It enables the identification of the physical product and its relation to the Part where the Part represents the design or specification that was used to manufacture the physical product, normally identified by a part number. The template also defines the how reference data, dates, properties, documents, etc. are assigned to the physical product.

NOTE In previous editions of PLCS DEXlib organizations that do not version ProductAsIndividuals were recommended to set the version id to "/NULL", i.e. the attribute identifier of entity Identification contains the string "/NULL" to indicate that no version information is relevant or intended. The current recommendation is to provide no versionId. This will result a single un-identified PartVersion being produced.

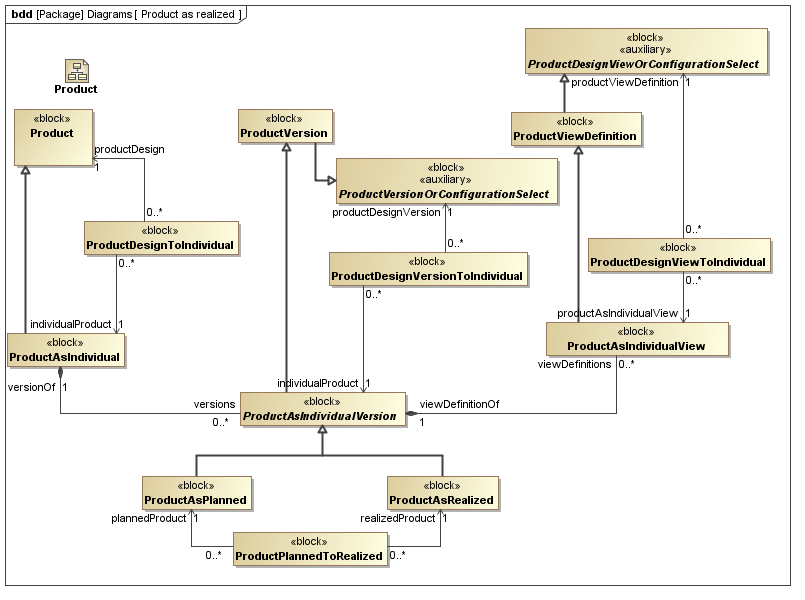

The SysML Block Definition diagram in Figure 1 shows how Product_as_realized is represented in the PLCS PSM.

../../../../../data/PLCS/psm_model/images/SysML_Block_Definition_Diagram__Diagrams__Product_as_realized.png

Figure 1 - Product as realized model

Related Templates

No templates have been explicitly defined as being related to the RealizedPart template.

NOTE The RealizedPart template may make reference to other templates as part of the Parametric Diagram. These are not listed here.

Template Block

Figure 2 shows the SysML Block that represents the template. The Block is an abstraction representing a pattern of templates and PLCS PSM objects.

The properties, i.e. the SysML Block Part, Reference and Value properties, of the template's SysML Block are described in the Template Properties section.

The output ports shown on the template's SysML Block are described in the template output ports section.

Figure 2 - Template block definition diagram for RealizedPart

Template Properties

The following Part, Reference, and Value properties are defined for this template:

References:

part [0..1] (Template: OASIS:Part)

The part representing the design or specification that was used to manufacture the realized part.

viewDefinitionContext [0..1] (Template: OASIS:ViewDefinitionContext)

The optional ViewDefinitionContext use to create the ProductAsIndividualView . This is needed if properties etc. are to be assigned to this individual.

Parts:

ids [1..*] (Template: OASIS:Identification)

The identifiers of the RealizedPart. Typically a serial number or UII

The reference data used in Template: OASIS:Identification is restricted as follows:

RDL constraint 1:

There must be at least one identifier that is classified as a product as individual identification code.

The reference data for:

OASIS:Identification.role -> ExternalOwlClass.class

is restricted to the following class or a subclass:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Product_as_individual_identification_code

Example reference data is:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Serial_identification_code

used when the identifier is a serial number.

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#UII

used when the identifier is a UII.

versionId [0..1] (Template: OASIS:Identification)

The identifier of the realized part version. This is typically used to identify the revision of the realized part indicating what modifications have been fitted.

NOTE If no versionId is specified a unique, unidentified ProductAsRealized is created.

The reference data used in Template: OASIS:Identification is restricted as follows:

RDL constraint 1:

The identifier must be a version identifier.

The reference data for:

OASIS:Identification.role -> ExternalOwlClass.class

is restricted to the following class or a subclass:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Version_identification_code

classification [0..1] (Template: OASIS:Classifier)

The classification of the realized part.

The reference data used in Template: OASIS:Classifier is restricted as follows:

RDL constraint 1:

The reference data for:

OASIS:Classifier.class -> ExternalOwlClass.class

is restricted to classes that are subclasses of the following class:

http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/plcs/plcs-psm/refdata/plcs-psm#ProductAsIndividual

descriptions [0..*] (Template: OASIS:Descriptor)

An Optional set of descriptions for the realized part.

names [0..*] (Template: OASIS:Name)

The collection of names of the RealizedPart.

Template Output Ports

The following output ports are defined for this template:

pai (Block: Ap239Ap233Psm:ProductAsIndividual)

Enables the Block: Ap239Ap233Psm:ProductAsIndividual instantiated by this template to be referenced when the template is used.

par (Block: Ap239Ap233Psm:ProductAsRealized)

Enables the Block: Ap239Ap233Psm:ProductAsRealized instantiated by this template to be referenced when the template is used.

view (Block: Ap239Ap233Psm:ProductAsIndividualView)

Enables the Block: Ap239Ap233Psm:ProductAsIndividualView instantiated by this template to be referenced when the template is used.

par_rel (Block: Ap239Ap233Psm:ProductDesignVersionToIndividual)

Enables the Block: Ap239Ap233Psm:ProductDesignVersionToIndividual instantiated by this template to be referenced when the template is used.

pai_rel (Block: Ap239Ap233Psm:ProductDesignToIndividual)

Enables the Block: Ap239Ap233Psm:ProductDesignToIndividual instantiated by this template to be referenced when the template is used.

Template constraints

There are no constraints defined for this template.

Template Parametric diagram

This section describes the template's Parametric Diagram. The diagram details the pattern of templates and PLCS PSM objects that are required to represent the template RealizedPart.

The public properties, i.e. those visible in the template's SysML block (See Figure 2) are shown on the left of a Parametric Diagram.

NOTE Restrictions on the reference data to be set on the public properties is defined in the Template Properties section.

The output ports are shown on the right of the Parametric Diagram.

PLCS PSM objects are shaded khaki and template shaded light green in a Parametric Diagram.

Figure 2 - RealizedPart

Instantiated Blocks

The following blocks are instantiated by this template and bound to private parts of the template as shown in the Parametric Diagram section:

Private Part Property:productAsIndividual [1] (Block: Ap239Ap233Psm:ProductAsIndividual)

Private Part Property:productAsIndividualView [0..1] (Block: Ap239Ap233Psm:ProductAsIndividualView)

Private Part Property:productDesignVersionToIndividual [0..1] (Block: Ap239Ap233Psm:ProductDesignVersionToIndividual)

Private Part Property:productAsRealized [1] (Block: Ap239Ap233Psm:ProductAsRealized)

Private Part Property:productDesignToIndividual [0..1] (Block: Ap239Ap233Psm:ProductDesignToIndividual)

Private Part Property:combNameAndDesc [1] (Constraint Block: OASIS:Name:CombineNamesAndDescriptors)

Default instances

Figure 3 shows the instances that have been instantiated in the template. These are used to set the default value of blocks.

Figure 3 - Model instance diagram for RealizedPart

Instances

The following instances have been created:

classProductAsIndividualIdentificationCode instance of Block: Ap239Ap233Psm:ExternalOwlClass.

ExternalOwlClass.class = http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Product_as_individual_identification_code

This or a sub-class of this is required for one of the ids.

classSerialIdentificationCode instance of Block: Ap239Ap233Psm:ExternalOwlClass.

ExternalOwlClass.class = http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#Serial_identification_code

This is a common sub class of product as individual code used to classify serial numbers.

classUII instance of Block: Ap239Ap233Psm:ExternalOwlClass.

ExternalOwlClass.class = http://docs.oasis-open.org/plcs/ns/plcslib/v1.0/data/contexts/OASIS/refdata/plcs-rdl#UII

This is a common sub class of product as individual code used to classify Unique Item Identification codes.

Constraint Blocks

There are no constraint blocks defined in this template.

Example data

The following section provides an example XML dataset that has been instantiated in accordance with this template.

Data set: Realized Part

Realized Part

realizedpart.xml

View

download

This example shows the XML instantiated to represent a Realized Part.

The Realized Part is:

identified by a serial number: sn001 assigned by the organization OrganizationX;
a realization of a part which is identified by a part number: p2;
at revision level of rev-A.
