This document complements [PKCS11-Spec-v3.2], [PKCS11-Hist-v3.0]
and [PKCS11-Prof-v3.2] by providing guidance on how to implement the
PKCS #11 interface most effectively. In particular, it includes the following
guidance:
·
General overview information and clarification of assumptions and
requirements that drive or influence the design of PKCS #11 and the
implementation of PKCS #11-compliant solutions.
·
Specific recommendations for implementation of selected PKCS #11
functionality.
Guidance regarding conformant PKCS #11 implementations is
provided in [PKCS11-Prof-v3.2].
This version of the PKCS #11 Usage Guide is a resumption of
the Usage Guide version 2.40, now based on current PKCS #11 specification and
profiles version 3.2. It omits outdated information about comparison of
Cryptoki and other APIs, and deprecated PKCS #11 functionality though.
For a list of terms, acronyms, abbreviations and
conventions, refer to [PKCS11-Spec-v3.2].
Portable computing devices such as smart cards, USB token and
Hardware Security Modules are ideal tools for implementing public-key
cryptography, as they provide a way to store the private-key component of a
public-key/private-key pair securely, under the control of a single user. With
such a device, a cryptographic application, rather than performing
cryptographic operations itself, utilizes the device to perform the operations,
with sensitive information such as private keys never being revealed. As more applications
are developed for public-key cryptography, a standard programming interface for
these devices becomes increasingly valuable. This standard addresses this and
other needs.
Cryptoki's general model is illustrated in the following
figure. The model begins with one or more applications that need to perform
certain cryptographic operations, and ends with one or more cryptographic
devices, on which some or all the operations are actually performed. A user may
or may not be associated with an application.

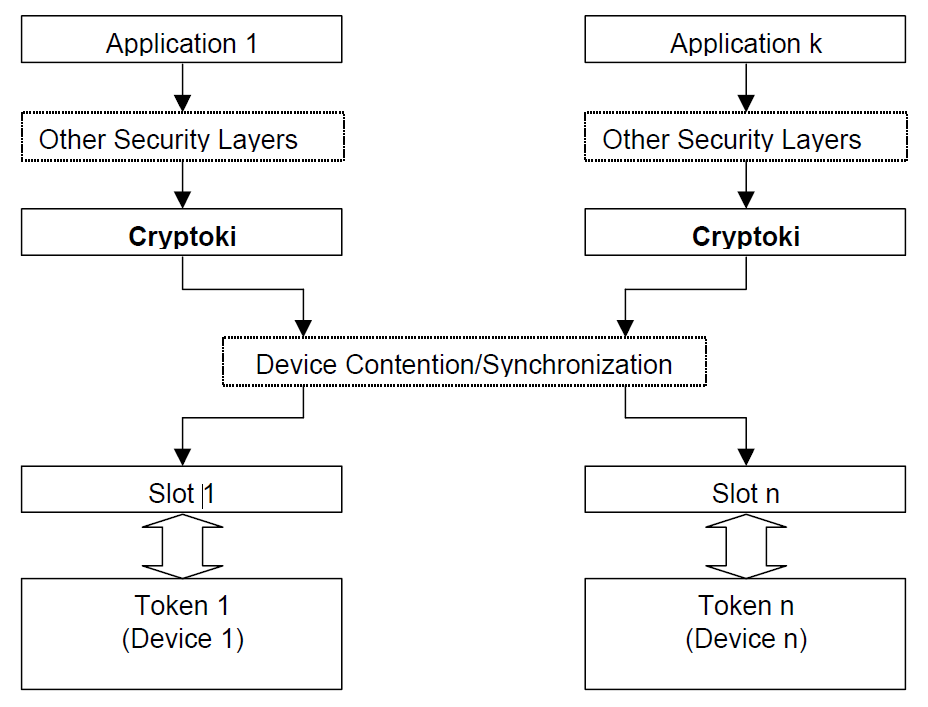

Figure 1, General Cryptoki
model
Cryptoki provides an interface to one or more cryptographic
devices that are active in the system through a number of “slots”. Each slot,
which corresponds to a physical reader or other device interface, may contain a
token. A token is typically “present in the slot” when a cryptographic device
is present in the reader. Of course, since Cryptoki provides a logical view of
slots and tokens, there may be other physical interpretations. It is possible
that multiple slots may share the same physical reader. The point is that a
system has some number of slots, and applications can connect to tokens in any
or all those slots.
A cryptographic device can perform some cryptographic
operations, following a certain command set; these commands are typically
passed through standard device drivers, for instance PCI Express card services
or socket services. Cryptoki makes each cryptographic device look logically
like every other device, regardless of the implementation technology. Thus, the
application need not interface directly to the device drivers (or even know
which ones are involved); Cryptoki hides these details. Indeed, the underlying
“device” may be implemented entirely in software (for instance, as a process
running on a server)—no special hardware is necessary.
Cryptoki is likely to be implemented as a library supporting
the functions in the interface, and applications will be linked to the library.
An application may be linked to Cryptoki directly; alternatively, Cryptoki can
be a so-called “shared” library (or dynamic link library), in which case the
application would link the library dynamically. Shared libraries are fairly
straightforward to produce in operating systems such as Microsoft Windows, and
can be achieved without too much difficulty in UNIX and Linux systems.
The dynamic approach certainly has advantages as new
libraries are made available, but from a security perspective, there are some
drawbacks. In particular, if a library is easily replaced, then there is the
possibility that an attacker can substitute a rogue library that intercepts a
user’s PIN. From a security perspective, therefore, direct linking is generally
preferable, although code-signing techniques can prevent many of the security
risks of dynamic linking. In any case, whether the linking is direct or
dynamic, the programming interface between the application and a Cryptoki
library remains the same.
The kinds of devices and capabilities supported will depend
on the particular Cryptoki library. This standard specifies only the interface
to the library, not its features. In particular, not all libraries will support
all the mechanisms (algorithms) defined in this interface (since not all tokens
are expected to support all the mechanisms), and libraries will likely support
only a subset of all the kinds of cryptographic devices that are available.
(The more kinds, the better, of course, and it is anticipated that libraries
will be developed supporting multiple kinds of token, rather than just those
from a single vendor.) It is expected that as applications are developed that
interface to Cryptoki, standard library and token “profiles” will emerge.
Cryptoki’s logical view of a token is a device that stores
objects and can perform cryptographic functions. Cryptoki defines three classes
of object: data, certificates, and keys. A data object is defined by an
application. A certificate object stores a certificate. A key object stores a
cryptographic key. The key may be a public key, a private key, or a secret key;
each of these types of keys has subtypes for use in specific mechanisms. This
view is illustrated in the following figure:

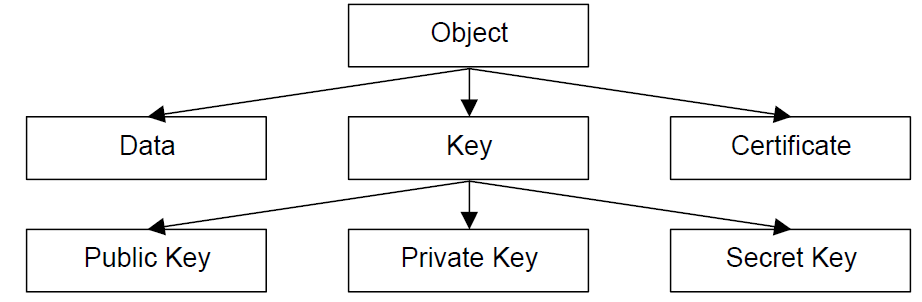

Figure 2, Object Hierarchy
Objects are also classified according to their lifetime and
visibility. “Token objects” are visible to all applications connected to the
token that have sufficient permission, and remain on the token even after the
“sessions” (connections between an application and the token) are closed and
the token is removed from its slot. “Session objects” are more temporary:
whenever a session is closed by any means, all session objects created by that
session are automatically destroyed. In addition, session objects are only
visible to the application which created them.
Further classification defines access requirements.
Applications are not required to log into the token to view “public objects”;
however, to view “private objects”, a user must be authenticated to the token
by a PIN or some other token-dependent method (for example, a biometric
device). A token can create and destroy objects, manipulate them, and search
for them. It can also perform cryptographic functions with objects. A token may
have an internal random number generator.
It is important to distinguish between the logical view of a
token and the actual implementation, because not all cryptographic devices will
have this concept of “objects,” or be able to perform every kind of
cryptographic function. Many devices will simply have fixed storage places for
keys of a fixed algorithm and be able to do a limited set of operations.
Cryptoki's role is to translate this into the logical view, mapping attributes
to fixed storage elements and so on. Not all Cryptoki libraries and tokens need
to support every object type. It is expected that standard “profiles” will be
developed, specifying sets of algorithms to be supported.
“Attributes” are characteristics that distinguish an
instance of an object. In Cryptoki, there are general attributes, such as
whether the object is private or public. There are also attributes that are
specific to a particular type of object, such as a modulus or exponent for RSA
keys.
This version of Cryptoki recognizes two token user types.
One type is a Security Officer (SO). The other type is the normal user. Only
the normal user is allowed access to private objects on the token, and that
access is granted only after the normal user has been authenticated. Some
tokens may also require that a user be authenticated before any cryptographic
function can be performed on the token, whether or not it involves private
objects. The role of the SO is to initialize a token and to set the normal
user’s PIN (or otherwise define, by some method outside the scope of this
version of Cryptoki, how the normal user may be authenticated), and possibly to
manipulate some public objects. The normal user cannot log in until the SO has
set the normal user’s PIN.
Other than the support for two types of users, Cryptoki does
not address the relationship between the SO and a community of users. In
particular, the SO and the normal user may be the same person or may be
different, but such matters are outside the scope of this standard.
With respect to PINs that are entered through an
application, Cryptoki assumes only that they are variable-length strings of
characters from the set in [PKCS11-Spec-v3.2] Table 3. Any translation
to the device’s requirements is left to the Cryptoki library. The following
issues are beyond the scope of Cryptoki:
·
Any padding of PINs.
·
How the PINs are generated (by the user, by the application, or
by some other means).
PINs that are supplied by some means other than through an
application (e.g., PINs entered via a PIN pad on the token) are even more
abstract. Cryptoki knows how to wait (if need be) for such a PIN to be supplied
and used, and little more.
To Cryptoki, an application consists of a single address
space and all the threads of control running in it. An application becomes a
“Cryptoki application” by calling the Cryptoki function C_Initialize
from one of its threads; after this call is made, the application can call
other Cryptoki functions. When the application has finished using Cryptoki, it
calls the Cryptoki function C_Finalize and ceases to be a Cryptoki
application.
In general, on most platforms, the previous paragraph means
that an application consists of a single process.
Consider a UNIX process P which becomes a Cryptoki
application by calling C_Initialize, and then uses the fork() system
call to create a child process C. Since P and C have
separate address spaces (or will when one of them performs a write operation,
if the operating system follows the copy-on-write paradigm), they are not part
of the same application. Therefore, if C needs to use Cryptoki, it needs
to perform its own C_Initialize call. Furthermore, if C needs to
be logged into the token(s) that it will access via Cryptoki, it needs to log
into them even if P is already logged in, since P and C
are separate applications.
In this particular case (when C is the child of a
process which is a Cryptoki application), the behavior of Cryptoki is undefined
if C tries to use it without its own C_Initialize call. Ideally,
such an attempt would return the value CKR_CRYPTOKI_NOT_INITIALIZED; however,
because of the way fork() works, insisting on this return value might have a
bad impact on the performance of libraries. Therefore, the behavior of Cryptoki
in this situation is left undefined. Applications should definitely not attempt
to take advantage of any potential “shortcuts” which might (or might not!) be
available because of this.
In the scenario specified above, C should actually
call C_Initialize whether or not it needs to use Cryptoki; if it has no
need to use Cryptoki, it should then call C_Finalize immediately
thereafter. This (having the child immediately call C_Initialize and
then call C_Finalize if the parent is using Cryptoki) is considered to
be good Cryptoki programming practice, since it can prevent the existence of
dangling duplicate resources that were created at the time of the fork() call;
however, it is not required by Cryptoki.
Some applications will access a Cryptoki library in a
multi-threaded fashion. Cryptoki enables applications to provide information to
libraries so that they can give appropriate support for multi-threading. In
particular, when an application initializes a Cryptoki library with a call to C_Initialize,
it can specify one of four possible multi-threading behaviors for the library:
1. The
application can specify that it will not be accessing the library concurrently
from multiple threads, and so the library need not worry about performing any
type of locking for the sake of thread-safety.
2. The
application can specify that it will be accessing the library
concurrently from multiple threads, and the library must be able to use native
operation system synchronization primitives to ensure proper thread-safe
behavior.
3. The
application can specify that it will be accessing the library
concurrently from multiple threads, and the library must use a set of
application-supplied synchronization primitives to ensure proper thread-safe
behavior.
4. The
application can specify that it will be accessing the library
concurrently from multiple threads, and the library must use either the native
operating system synchronization primitives or a set of application-supplied
synchronization primitives to ensure proper thread-safe behavior.
The 3rd and 4th types of behavior
listed above are appropriate for multi-threaded applications that are not using
the native operating system thread model. The application-supplied
synchronization primitives consist of four functions for handling mutex (mutual
exclusion) objects in the application’s threading model. Mutex objects are
simple objects that can be in either of two states at any given time: unlocked
or locked. If a call is made by a thread to lock a mutex that is already
locked, that thread blocks (waits) until the mutex is unlocked; then it locks
it and the call returns. If more than one thread is blocking on a particular
mutex, and that mutex becomes unlocked, then exactly one of those threads will
get the lock on the mutex and return control to the caller (the other blocking
threads will continue to block and wait for their turn).
See [PKCS11-Spec-v3.2] section 5.1.5 for more
information on Cryptoki’s view of mutex objects.
In addition to providing the above thread-handling
information to a Cryptoki library at initialization time, an application can
also specify whether or not application threads executing library calls may use
native operating system calls to spawn new threads.
Cryptoki requires that an application open one or more
sessions with a token to gain access to the token’s objects and functions. A
session provides a logical connection between the application and the token. A
session can be a read/write (R/W) session or a read-only (R/O) session.
Read/write and read-only refer to the access to token objects, not to session
objects. In both session types, an application can create, read, write and
destroy session objects, and read token objects. However, only in a read/write
session can an application create, modify, and destroy token objects.
After it opens a session, an application has access to the
token’s public objects. All threads of a given application have access to
exactly the same sessions and the same session objects. To gain access to the
token’s private objects, the normal user must log in and be authenticated.
When a session is closed, any session objects which were
created in that session are destroyed. This holds even for session objects that
are “being used” by other sessions. That is, if a single application has
multiple sessions open with a token, and it uses one of them to create a
session object, then that session object is visible through any of that
application’s sessions. However, as soon as the session that was used to create
the object is closed, that object is destroyed.
Cryptoki supports multiple sessions on multiple tokens. An
application may have one or more sessions with one or more tokens. In general,
a token may have multiple sessions with one or more applications. A particular
token may allow an application to have only a limited number of sessions—or
only a limited number of read/write sessions-- however.
An open session can be in one of several states. The session
state determines allowable access to objects and functions that can be
performed on them. The session states are described in section 2.6.2 and section 2.6.3.

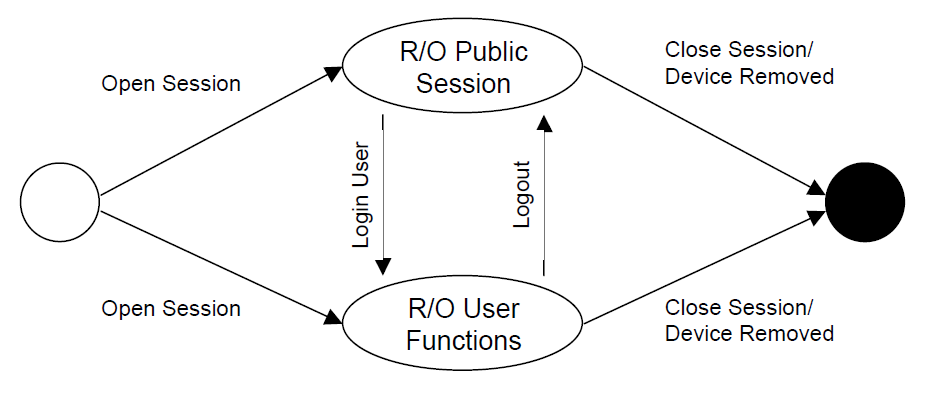

A read-only session can be in one of two states, as
illustrated in the following figure. When the session is initially opened, it
is in either the “R/O Public Session” state (if the application has no
previously open sessions that are logged in) or the “R/O User Functions” state
(if the application already has an open session that is logged in). Note that
read-only SO sessions do not exist. Read-only sessions that are open while the
SO is logged in behave identically to the "R/O Public Session" state.
Figure 3, Read-Only session states
The following table describes the session states:
Table
1, Read-Only
Session States
|
State
|
Description
|
|
R/O Public Session
|
The application has opened a
read-only session. The application has read-only access to public token
objects and read/write access to public session objects.
|
|
R/O User Functions
|
The normal user has been
authenticated to the token. The application has read-only access to all token
objects (public or private) and read/write access to all session objects
(public or private).
|

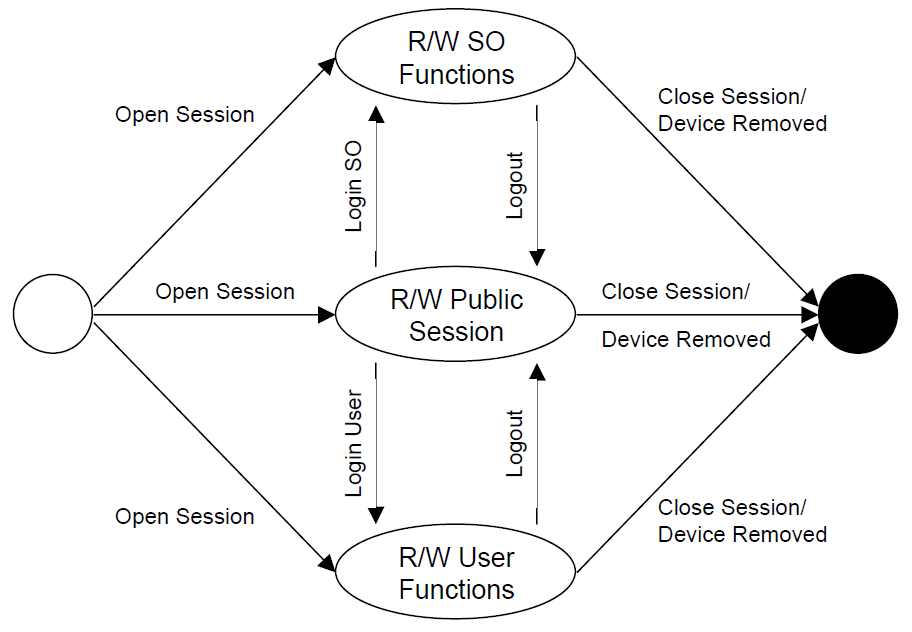

A read/write session can be in one of three states, as
illustrated in the following figure. When the session is opened, it is in
either the “R/W Public Session” state (if the application has no previously
open sessions that are logged in), the “R/W User Functions” state (if the
application already has an open session that the normal user is logged into),
or the “R/W SO Functions” state (if the application already has an open session
that the SO is logged into).
Figure 4, Read-Write session states
The following table describes the session states:
Table 2, Read-Write
Session States
|
State
|
Description
|
|
R/W Public Session
|
The application has opened a
read/write session. The application has read/write access to all public
objects.
|
|
R/W SO Functions
|
The Security Officer has been authenticated
to the token. The application has read/write access only to public objects on
the token, not to private objects. The SO can set the normal user’s PIN.
|
|
R/W User Functions
|
The normal user has been
authenticated to the token. The application has read/write access to all
objects.
|
The following table summarizes the kind of access each type
of session has to each type of object. A given type of session has either
read-only access, read/write access, or no access whatsoever to a given type of
object.
Note that creating or deleting an object requires read/write
access to it, e.g., a “R/O User Functions” session cannot create or delete a
token object.
Table 3, Access
to different types of objects by different types of sessions
|
Type
of object
|
Type of session
|
|
R/O
Public
|
R/W
Public
|
R/O
User
|
R/W
User
|
R/W
SO
|
|
Public session object
|
R/W
|
R/W
|
R/W
|
R/W
|
R/W
|
|
Private session object
|
|
|
R/W
|
R/W
|
|
|
Public token object
|
R/O
|
R/W
|
R/O
|
R/W
|
R/W
|
|
Private token object
|
|
|
R/O
|
R/W
|
|
As previously indicated, the access to a given session
object which is shown in Table 3 is limited to sessions belonging to the
application which owns that object (i.e., which created that object).
Session events cause the session state to change. The
following table describes the events:
Table 4, Session
events
|
Event
|
Occurs when...
|
|
Log In SO
|
the SO is authenticated to the token.
|
|
Log In User
|
the normal user is authenticated to
the token.
|
|
Log Out
|
the application logs out the current
user (SO or normal user).
|
|
Close Session
|
the application closes the session or
closes all sessions.
|
|
Device Removed
|
the device underlying the token has
been removed from its slot.
|
When the device is removed, all sessions of all applications
are automatically logged out. Furthermore, all sessions any applications have
with the device are closed (this latter behavior was not present in Version 1.0
of Cryptoki) - an application cannot have a session with a token that is not
present. Realistically, Cryptoki may not be constantly monitoring whether or
not the token is present, and so the token’s absence could conceivably not be
noticed until a Cryptoki function is executed. If the token is re-inserted into
the slot before that, Cryptoki might never know that it was missing.
In Cryptoki, all sessions that an application has with a
token must have the same login/logout status (i.e., for a given application and
token, one of the following holds: all sessions are public sessions; all
sessions are SO sessions; or all sessions are user sessions). When an
application’s session logs into a token, all that application’s sessions with
that token become logged in, and when an application’s session logs out of a
token, all of that application’s sessions with that token become logged out. Similarly,
for example, if an application already has a R/O user session open with a
token, and then opens a R/W session with that token, the R/W session is
automatically logged in.
This implies that a given application may not simultaneously
have SO sessions and user sessions open with a given token.
A session handle is a Cryptoki-assigned value that
identifies a session. It is in many ways akin to a file handle, and is
specified to functions to indicate which session the function should act on.
All threads of an application have equal access to all session handles. That
is, anything that can be accomplished with a given file handle by one thread
can also be accomplished with that file handle by any other thread of the same
application.
Cryptoki also has object handles, which are identifiers used
to manipulate Cryptoki objects. Object handles are similar to session handles
in the sense that visibility of a given object through an object handle is the
same among all threads of a given application. R/O sessions, of course, only
have read-only access to token objects, whereas R/W sessions have read/write
access to token objects.
Valid session handles and object handles in Cryptoki
always have nonzero values. For developers’ convenience, Cryptoki defines
the following symbolic value:
Very roughly speaking, there are three broad types of
operations an open session can be used to perform: administrative operations
(such as logging in); object management operations (such as creating or
destroying an object on the token); and cryptographic operations (such as
computing a message digest). Cryptographic operations sometimes require more
than one function call to the Cryptoki API to complete. In general, a single
session can perform only one operation at a time; for this reason, it may be desirable
for a single application to open multiple sessions with a single token. For
efficiency’s sake, however, a single session on some tokens can perform the
following pairs of operation types simultaneously: message digesting and
encryption; decryption and message digesting; signature or MACing and
encryption; and decryption and verifying signatures or MACs. Details on
performing simultaneous cryptographic operations in one session are provided in
[PKCS11-Spec-v3.2] section 5.20.
A consequence of the fact that a single session can, in
general, perform only one operation at a time is that an application should
never make multiple simultaneous function calls to Cryptoki which use a common
session. If multiple threads of an application attempt to use a common
session concurrently in this fashion, Cryptoki does not define what happens.
This means that if multiple threads of an application all need to use Cryptoki
to access a particular token, it might be appropriate for each thread to have
its own session with the token, unless the application can ensure by some other
means (e.g., by some locking mechanism) that no sessions are ever used by
multiple threads simultaneously. This is true regardless of whether or not the
Cryptoki library was initialized in a fashion which permits safe multi-threaded
access to it. Even if it is safe to access the library from multiple threads
simultaneously, it is still not necessarily safe to use a particular session
from multiple threads simultaneously.
We give here a detailed and lengthy example of how multiple
applications can make use of sessions in a Cryptoki library. Despite the
somewhat painful level of detail, we highly recommend reading through this
example carefully to understand session handles and object handles.
We caution that our example is decidedly not meant to
indicate how multiple applications should use Cryptoki simultaneously; rather,
it is meant to clarify what uses of Cryptoki’s sessions and objects and handles
are permissible. In other words, instead of demonstrating good technique here,
we demonstrate “pushing the envelope”.
For our example, we suppose that two applications, A
and B, are using a Cryptoki library to access a single token T.
Each application has two threads running: A has threads A1 and A2,
and B has threads B1 and B2. We assume in what follows
that there are no instances where multiple threads of a single application
simultaneously use the same session, and that the events of our example occur
in the order specified, without overlapping each other in time.
1.
A1 and B1 each initialize the Cryptoki library by calling C_Initialize
(see [PKCS11-Spec-v3.2] for
explanation of the specifics of
Cryptoki functions). Note that exactly one call to C_Initialize should
be made for each application (as opposed to one call for every thread, for
example).
2.
A1 opens a R/W session and receives the session handle 7 for the session.
Since this is the first session to be opened for A, it is a public
session.
3.
A2 opens a R/O session and receives the session handle 4. Since all of A’s
existing sessions are public sessions, session 4 is also a public session.
4.
A1 attempts to log the SO into session 7. The attempt fails, because
read-only sessions cannot be used to log in the SO.
5.
A2 logs the normal user into session 7. This turns session 7 into a R/W
user session and turns session 4 into a R/O user session. Note that because A1
and A2 belong to the same application, they have equal access to all
sessions, and therefore, A2 is able to perform this action.
6.
A2 opens a R/W session and receives the session handle 9. Since all of A’s
existing sessions are user sessions, session 9 is also a user session.
7.
A1 closes session 9.
8.
B1 attempts to log out session 4. The attempt fails, because A and B
have no access rights to each other’s sessions or objects. B1 receives
an error message which indicates that there is no such session handle
(CKR_SESSION_HANDLE_INVALID).
9.
B2 attempts to close session 4. The attempt fails in precisely the same
way as B1’s attempt to log out session 4 failed (i.e., B2 receives
a CKR_SESSION_HANDLE_INVALID error code).
10.
B1 opens a R/W session and receives the session handle 7. Note that, as
far as B is concerned, this is the first occurrence of session handle 7.
A’s session 7 and B’s session 7 are completely different
sessions.
11.
B1 logs the SO into [B’s] session 7. This turns B’s session
7 into a R/W SO session and has no effect on either of A’s sessions.
12.
A1 uses [A’s] session 7 to create a session object O1 of
some sort and receives the object handle 7. Note that a Cryptoki implementation
may or may not support separate spaces of handles for sessions and objects.
13.
B1 uses [B’s] session 7 to create a token object O2
of some sort and receives the object handle 7. As with session handles,
different applications have no access rights to each other’s object handles,
and so B’s object handle 7 is entirely different from A’s object
handle 7. Of course, since B1 is an SO session, it cannot create private
objects, and so O2 must be a public object (if B1 attempted to
create a private object, the attempt would fail with error code
CKR_USER_NOT_LOGGED_IN or CKR_TEMPLATE_INCONSISTENT).
14.
B2 uses [B’s] session 7 to perform some operation to
modify the object associated with [B’s] object handle 7. This modifies O2.
15.
A1 uses [A’s] session 4 to perform an object search operation to
get a handle for O2. The search returns object handle 1. Note that A’s
object handle 1 and B’s object handle 7 now point to the same object.
16.
A1 attempts to use [A’s] session 4 to modify the object associated
with [A’s] object handle 1. The attempt fails, because A’s
session 4 is a R/O session, and is therefore incapable of modifying O2,
which is a token object. A1 receives an error message indicating that
the session is a R/O session (CKR_SESSION_READ_ONLY).
17.
A1 uses [A’s] session 7 to modify the object associated with [A’s]
object handle 1. This time, since A’s session 7 is a R/W session, the
attempt succeeds in modifying O2.
18.
B1 uses [B’s] session 7 to perform an object search
operation to find O1. Since O1 is a session object belonging to A,
however, the search does not succeed.
19.
A2 uses [A’s] session 4 to perform some operation to
modify the object associated with [A’s] object handle 7. This operation
modifies O1.
20.
A2 uses [A’s] session 7 to destroy the object associated with [A’s]
object handle 1. This destroys O2.
21.
B1 attempts to perform some operation with the object
associated with [B’s] object handle 7. The attempt fails, since there is
no longer any such object. B1 receives an error message indicating that
its object handle is invalid (CKR_OBJECT_HANDLE_INVALID).
22.
A1 logs out [A’s] session 4. This turns A’s
session 4 into a R/O public session and turns A’s session 7 into a R/W
public session.
23.
A1 closes [A’s] session 7. This destroys the session object O1,
which was created by A’s session 7.
24.
A2 attempts to use [A’s] session 4 to perform some
operation with the object associated with [A’s] object handle 7. The
attempt fails, since there is no longer any such object. It returns a
CKR_OBJECT_HANDLE_INVALID.
25.
A2 executes a call to C_CloseAllSessions. This closes [A’s]
session 4. At this point, if A were to open a new session, the session
would not be logged in (i.e., it would be a public session).
26.
B2 closes [B’s] session 7. At this point, if B were
to open a new session, the session would not be logged in.
27.
A and B each call C_Finalize to indicate that they are done
with the Cryptoki library.
Modules implementing previous versions of PKCS #11 may
return the CKR_SESSION_READ_ONLY_EXISTS and CKR_SESSION_READ_WRITE_SO_EXISTS
error codes.
As an interface to cryptographic devices, Cryptoki provides
a basis for security in a computer or communications system. Two of the features
of the interface that facilitate such security are the following:
1.
Access to private objects on the token, and possibly to cryptographic
functions and/or certificates on the token as well, requires a PIN. Thus,
possessing the cryptographic device that implements the token may not be
sufficient to use it; the PIN may also be needed.
2.
Additional protection can be given to private keys and secret keys by
marking them as “sensitive” or “unextractable”. Sensitive keys cannot be
revealed in plaintext off the token, and unextractable keys cannot be revealed
off the token even when encrypted (though they can still be used as keys).
It is expected that access to private, sensitive, or
unextractable objects by means other than Cryptoki (e.g., other programming
interfaces, or reverse engineering of the device) would be difficult.
If a device does not have a tamper-proof environment or
protected memory in which to store private and sensitive objects, the device
may encrypt the objects with a master key which is perhaps derived from the
user’s PIN. The particular mechanism for protecting private objects is left to
the device implementation, however.
Based on these features it should be possible to design
applications in such a way that the token can provide adequate security for the
objects the applications manage.
Of course, cryptography is only one element of security, and
the token is only one component in a system. While the token itself may be
secure, one must also consider the security of the operating system by which
the application interfaces to it, especially since the PIN may be passed
through the operating system. This can make it easy for a rogue application on
the operating system to obtain the PIN; it is also possible that other devices
monitoring communication lines to the cryptographic device can obtain the PIN.
Rogue applications and devices may also change the commands sent to the
cryptographic device to obtain services other than what the application
requested.
It is important to be sure that the system is secure against
such attack. Cryptoki may well play a role here; for instance, a token may be
involved in the “booting up” of the system.
We note that none of the attacks just described can
compromise keys marked “sensitive,” since a key that is sensitive will always
remain sensitive. Similarly, a key that is unextractable cannot be modified to
be extractable.
An application may also want to be sure that the token is
“legitimate” in some sense (for a variety of reasons, including export
restrictions and basic security). This is outside the scope of the present
standard, but it can be achieved by distributing the token with a built-in,
certified public/private-key pair, by which the token can prove its identity.
The certificate would be signed by an authority (presumably the one indicating
that the token is “legitimate”) whose public key is known to the application.
The application would verify the certificate and challenge the token to prove
its identity by signing a time-varying message with its built-in private key.
Once a normal user has been authenticated to the token,
Cryptoki does not restrict which cryptographic operations the user may perform;
the user may perform any operation supported by the token. Some tokens may not
even require any type of authentication to make use of its cryptographic
functions.
To protect against chosen ciphertext attacks, like the
Bleichenbacher attack, use PKCS #1 Version 2, with OAEP, and disable support
for PKCS #1, Version 1.5.
Furthermore, more specifically to smart card
implementations, the requirement of the PIN and a long open connection to the
device is required to execute the attack. For smartcard implementations,
execution of these attacks requires private key operations and a sufficiently
long open connection. It is strongly recommended that any applets exposing
private key operations are protected using an encrypted PIN (a PIN not
submitted in the clear), and the session is closed when not in use.
In Cryptoki, there are several different types of operations
which can be “active” in a session. An active operation is essentially one
which takes more than one Cryptoki function call to perform. The types of
active operations are object searching; encryption; decryption;
message-digesting; signature with appendix; signature with recovery;
verification with appendix; and verification with recovery.
A given session can have 0, 1, or 2 operations active at a
time. It can only have 2 operations active simultaneously if the token supports
this; moreover, those two operations must be one of the four following pairs of
operations: digesting and encryption; decryption and digesting; signing and
encryption; decryption and verification.
If an application attempts to initialize an operation (make
it active) in a session, but this cannot be accomplished because of some other
active operation(s), the application receives the error value
CKR_OPERATION_ACTIVE. This error value can also be received if a session has an
active operation and the application attempts to use that session to perform
any of various operations which do not become “active”, but which require
cryptographic processing, such as using the token’s random number generator, or
generating/wrapping/unwrapping/deriving a key.
To abandon an active operation an application may have to
complete the operation and discard the result. Closing the session will also
have this effect. Alternatively, the library may allow active operations to be
abandoned by the application, simply by allowing initialization for some other
operation. In this case CKR_OPERATION_ACTIVE will not be returned but the
previous active operation will be unusable.
Different threads of an application should never share
sessions, unless they are extremely careful not to make function calls at the
same time. This is true even if the Cryptoki library was initialized with
locking enabled for thread-safety.
When multiple applications, or multiple threads within an
application, are accessing a set of common objects the issue of object
protection becomes important. This is especially the case when application A
activates an operation using object O, and application B attempts to delete O
before application A has finished the operation. Unfortunately, variation in
device capabilities makes an absolute behavior specification impractical.
General guidelines are presented here for object protection behavior.
Whenever possible, deleting an object in one application
should not cause that object to become unavailable to another application or
thread that is using the object in an active operation until that operation is
complete. For instance, application A has begun a signature operation with
private key P and application B attempts to delete P while the signature is in
progress. In this case, one of two things should happen. The object is deleted
from the device, but the operation is allowed to complete because the operation
uses a temporary copy of the object, or the delete operation blocks until the
signature operation has completed. If neither of these actions can be supported
by an implementation, then the error code CKR_OBJECT_HANDLE_INVALID may be
returned to application A to indicate that the key being used to perform its
active operation has been deleted.
Whenever possible, changing the value of an object attribute
should impact the behavior of active operations in other applications or
threads. If this cannot be supported by an implementation, then the appropriate
error code indicating the reason for the failure should be returned to the
application with the active operation.
In general, a Cryptoki function which requires a template
for an object needs the template to specify - either explicitly or implicitly -
any attributes that are not specified elsewhere. If a template specifies a
particular attribute more than once, the function can return
CKR_TEMPLATE_INVALID or it can choose a particular value of the attribute from
among those specified and use that value. In any event, object attributes are
always single-valued.
Signing with recovery is a general alternative to ordinary
digital signatures (“signing with appendix”) which is supported by certain
mechanisms. Recall that for ordinary digital signatures, a signature of a
message is computed as some function of the message and the signer’s private
key; this signature can then be used (together with the message and the
signer’s public key) as input to the verification process, which yields a
simple “signature valid/signature invalid” decision.
Signing with recovery also creates a signature from a
message and the signer’s private key. However, to verify this signature, no
message is required as input. Only the signature and the signer’s public key
are input to the verification process, and the verification process outputs
either “signature invalid” or - if the signature is valid - the original
message.
Consider a simple example with the CKM_RSA_X_509
mechanism. Here, a message is a byte string which we will consider to be a
number modulo n (the signer’s RSA modulus). When this mechanism is used
for ordinary digital signatures (signatures with appendix), a signature is
computed by raising the message to the signer’s private exponent modulo n.
To verify this signature, a verifier raises the signature to the signer’s
public exponent modulo n, and accepts the signature as valid if and only
if the result matches the original message.
If CKM_RSA_X_509 is used to create signatures with recovery,
the signatures are produced in exactly the same fashion. For this particular
mechanism, any number modulo n is a valid signature. To recover the message
from a signature, the signature is raised to the signer’s public exponent
modulo n.
This appendix contains the references that are used in this
document.
While any hyperlinks included in this appendix were valid at
the time of publication, OASIS cannot guarantee their long-term validity.
[PKCS11-Hist-v3.0]
PKCS #11
Cryptographic Token Interface Historical Mechanisms Specification Version 3.0.
Edited by Chris Zimman and Dieter Bong. Latest stage. https://docs.oasis-open.org/pkcs11/pkcs11-hist/v3.0/pkcs11-hist-v3.0.html
[PKCS11-Prof-v3.2]
PKCS #11 Profiles Version 3.2. Edited by Tim Hudson. Latest
stage: https://docs.oasis-open.org/pkcs11/pkcs11-profiles/v3.2/pkcs11-profiles-v3.2.html
[PKCS11-Spec-v3.2]
PKCS #11 Specification Version 3.2. Edited by Dieter
Bong and Greg Scott. OASIS Standard. Latest stage: https://docs.oasis-open.org/pkcs11/pkcs11-spec/v3.2/pkcs11-spec-v3.2.html
B.1
Special Thanks
Substantial contributions to this document from the
following individuals are gratefully acknowledged:
Ms. Dina Kurktchi-Nimeh, Oracle
B.2
Participants
The following individuals were members of this Technical
Committee during the creation of this document and their contributions are gratefully
acknowledged:
Dr. Warren Armstrong, QuintessenceLabs Pty Ltd.
Anthony Berglas, Cryptsoft Pty Ltd.
Mr. Dieter Bong, Utimaco IS GmbH
Hamish Cameron, nCipher
Kenli Chong, QuintessenceLabs Pty Ltd.
Mr. Justin Corlett, Cryptsoft Pty Ltd.
Mr. Tony Cox, TC Logic/Tony Cox
Ms. Valerie Bubb Fenwick, Apple
Ms. Susan Gleeson, Oracle
Tim Hudson, Cryptsoft Pty Ltd. | OpenSSL Software Services
Inc.
Mr. Gershon Janssen, Reideate
Mr. Jakup Jelen, Red Hat
Mr. Darren Johnson, THALES
Sun-Ho Lee, MDS Intelligence Inc
John Leiseboer, QuintessenceLabs Pty Ltd.
Mr. John Leser, Oracle
Scott Leubner, THALES
Scott Marshall, Cryptsoft Pty Ltd.
Dr. Michael Markowitz, Information Security
Corporation
Mr. Darren Moffat, Oracle
Mr. Tim Ober, THALES
Dr. Florian Poppa, QuintessenceLabs Pty Ltd.
Mr. Robert Relyea, Red Hat
Mr. Jonathan Schulze-Hewett, Information Security
Corporation
Mr. Greg Scott, Cryptsoft Pty Ltd.
Mr. Martin Shannon, QuintessenceLabs Pty Ltd.
Mr. Oscar So, Individual
Simo Sorce, Red Hat
Mr. Manish Upasani, Utimaco IS GmbH
Ms. Magda Zdunkiewicz, Cryptsoft Pty Ltd.
|
Revision
|
Date
|
Editor
|
Changes Made
|
|
WD01
|
06 Aug 2024
|
Dieter Bong
|
Import of PKCS #11 V2.40 Usage Guide into Version 3.20
-Working Draft 01:
·
Import of sections 1 to 4, omitting outdated sections 5 and 6
·
Moving some text to align with updated template formats
·
Replace old technology (PCMCIA, smart diskette) by current
technology like (USB, PCI Express)
|
|
WD02
|
15 Apr 2025
|
Dieter Bong / Valerie Fenwick
|
Updated Appendix B Acknowledgments
|
Copyright © OASIS Open 2025. All Rights Reserved.
All capitalized terms in the following text have the
meanings assigned to them in the OASIS Intellectual Property Rights Policy (the
"OASIS IPR Policy"). The full Policy may be
found at the OASIS website: [https://www.oasis-open.org/policies-guidelines/ipr/].
This document and translations of it may be copied and
furnished to others, and derivative works that comment on or otherwise explain
it or assist in its implementation may be prepared, copied, published, and
distributed, in whole or in part, without restriction of any kind, provided
that the above copyright notice and this section are included on all such
copies and derivative works. However, this document itself may not be modified
in any way, including by removing the copyright notice or references to OASIS,
except as needed for the purpose of developing any document or deliverable
produced by an OASIS Technical Committee (in which case the rules applicable to
copyrights, as set forth in the OASIS IPR Policy, must be followed) or as
required to translate it into languages other than English.
The limited permissions granted above are perpetual and will
not be revoked by OASIS or its successors or assigns.
This document and the information contained herein is
provided on an "AS IS" basis and OASIS DISCLAIMS ALL WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF
THE INFORMATION HEREIN WILL NOT INFRINGE ANY OWNERSHIP RIGHTS OR ANY IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OASIS AND
ITS MEMBERS WILL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF ANY USE OF THIS DOCUMENT OR ANY PART
THEREOF.
The name "OASIS" is a trademark of OASIS, the owner and developer of this document,
and should be used only to refer to the organization and its official outputs.
OASIS welcomes reference to, and implementation and use of, documents, while
reserving the right to enforce its marks against misleading uses. Please see https://www.oasis-open.org/policies-guidelines/trademark/
for above guidance.
