This document assists users of OASIS CIQ V3.0 Committee Specification package that was released in November 2007 on how to use the fixes done to the files as described in the Change Log document for OASIS CIQ V3.0 Committee Specification.

Status:

This document was last revised or approved by the OASIS CIQ TC on the above date. The level of approval is also listed above. Check the current location noted above for possible later revisions of this document. This document is updated periodically on no particular schedule.

Technical Committee members should send comments on this specification to the Technical Committee’s email list. Others should send comments to the Technical Committee by using the “Send A Comment” button on the Technical Committee’s web page at www.oasis-open.org/committees/ciq.

For information on whether any patents have been disclosed that may be essential to implementing this specification, and any offers of patent licensing terms, please refer to the Intellectual Property Rights section of the Technical Committee web page (www.oasis-open.org/committees/ciq/ipr.php.

The non-normative errata page for this specification is located at www.oasis-open.org/committees/ciq.

Notices

All capitalized terms in the following text have the meanings assigned to them in the OASIS Intellectual Property Rights Policy (the "OASIS IPR Policy"). The full Policy may be found at the OASIS website.

This document and translations of it may be copied and furnished to others, and derivative works that comment on or otherwise explain it or assist in its implementation may be prepared, copied, published, and distributed, in whole or in part, without restriction of any kind, provided that the above copyright notice and this section are included on all such copies and derivative works. However, this document itself may not be modified in any way, including by removing the copyright notice or references to OASIS, except as needed for the purpose of developing any document or deliverable produced by an OASIS Technical Committee (in which case the rules applicable to copyrights, as set forth in the OASIS IPR Policy, must be followed) or as required to translate it into languages other than English.

The limited permissions granted above are perpetual and will not be revoked by OASIS or its successors or assigns.

This document and the information contained herein is provided on an "AS IS" basis and OASIS DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY WARRANTY THAT THE USE OF THE INFORMATION HEREIN WILL NOT INFRINGE ANY OWNERSHIP RIGHTS OR ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OASIS requests that any OASIS Party or any other party that believes it has patent claims that would necessarily be infringed by implementations of this OASIS Committee Specification or OASIS Standard, to notify OASIS TC Administrator and provide an indication of its willingness to grant patent licenses to such patent claims in a manner consistent with the IPR Mode of the OASIS Technical Committee that produced this specification.

OASIS invites any party to contact the OASIS TC Administrator if it is aware of a claim of ownership of any patent claims that would necessarily be infringed by implementations of this specification by a patent holder that is not willing to provide a license to such patent claims in a manner consistent with the IPR Mode of the OASIS Technical Committee that produced this specification. OASIS may include such claims on its website, but disclaims any obligation to do so.

OASIS takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on OASIS' procedures with respect to rights in any document or deliverable produced by an OASIS Technical Committee can be found on the OASIS website. Copies of claims of rights made available for publication and any assurances of licenses to be made available, or the result of an attempt made to obtain a general license or permission for the use of such proprietary rights by implementers or users of this OASIS Committee Specification or OASIS Standard, can be obtained from the OASIS TC Administrator. OASIS makes no representation that any information or list of intellectual property rights will at any time be complete, or that any claims in such list are, in fact, Essential Claims.

The names "OASIS", “CIQ”, “xNL”, “xAL”, xNAL”, “xPIL”, “xPRL”, “xCIL”, “xCRL” , “Genericode” and “UBL” are trademarks of OASIS, the owner and developer of this specification, and should be used only to refer to the organization and its official outputs. OASIS welcomes reference to, and implementation and use of, specifications, while reserving the right to enforce its marks against misleading uses. Please see http://www.oasis-open.org/who/trademark.php for above guidance.

Table of Contents

1 Installing and using V3.0 xAL Errata related files.. 5

1.1 Pre-requisite - Important.. 5

1.2 Installing and using revised files from change log.. 5

1.2.1 Copying and testing installation of revised files from change log. 5

A. Acknowledgements.. 10

B. Revision History.. 11

1 Installing and using V3.0 xAL Errata related files

1.1 Pre-requisite - Important

Before extracting and installing the package, you MUST have downloaded and installed the OASIS CIQ Specification V3.0 package (OASIS CIQ V3.0.zip) that was released in November 2007. This document is applicable ONLY to “OASIS CIQ V3.0.zip” package.

1.2 Installing and using revised files from change log

If no changes to any files of “OASIS CIQ V3.0.zip” were done, ignore this document and just replace the current installation with the new package (OASIS CIQ V3.0 CS02.zip).

If any of the following changes were done to the files under “OASIS CIQ V3.0.zip” after installation, namely,

- Adding/Updating/Deleting data in any of the enumeration files (code list - option 1) or genericode (code list – option 2) related files (.bat, .sh, .cva, .gc, .sch, .xsl).

- Changes the file path names in the batch or shell files

- Changes to example files or adding or deleting example files

- Changes to .xsd files

follow the steps defined in the following sections.

1.2.1 Copying and testing installation of revised files from change log

Install the “OASIS CIQ V3.0 CS02.zip” package in a temporary directory.

The directory structure will be:

· If xAL.xsd (code list - option 1) file under your CIQ installation directory “ciq-v3\ciq\v3.0\xsd\default\xsd” has been changed, rename it to “xAL-bak.xsd”. Copy “xAL.xsd” file from “ciq-v3\ciq\v3.0\xsd\default\xsd” in your temporary directory to “ciq-v3\ciq\v3.0\xsd\default\xsd” directory of your CIQ installation. Apply the changes made to xAL.xsd (now renamed as “xAL-bak.xsd”) to the newly copied “xAL.xsd” file. Delete “xAL-bak.xsd” file.

· If xNAL.xsd (code list - option 1) file under your CIQ installation directory “ciq-v3\ciq\v3.0\xsd\default\xsd” has been changed, rename it to “xNAL-bak.xsd”. Copy “xNAL.xsd” file from “ciq-v3\ciq\v3.0\xsd\default\xsd” in your temporary directory to “ciq-v3\ciq\v3.0\xsd\default\xsd” directory of your CIQ installation. Apply the changes made to xNAL.xsd (now renamed as “xNAL-bak.xsd”) to the newly copied “xNAL.xsd” file. Delete “xNAL-bak.xsd” file.

· Copy “ExtendOrganisationInfo.xsd” and “xPILPartyDetailsExtension.xml” files from your temporary directory “ciq-v3\ciq\v3.0\xsd\default\examples\xPIL” to “ciq-v3\ciq\v3.0\xsd\default\examples\xPIL”.

· If xAL.xsd (code list - option 2 (Genericode)) file under “ciq-v3\ciq\v3.0\xsd\genericode\xsd” has been changed, rename it to “xAL-bak.xsd”. Copy “xAL.xsd” file from “ciq-v3\ciq\v3.0\xsd\genericode\xsd” in your temporary directory to “ciq-v3\ciq\v3.0\xsd\genericode\xsd” directory of your CIQ installation. Apply the changes made to xAL.xsd (now renamed as “xAL-bak.xsd”) to the newly copied “xAL.xsd” file. Delete “xAL-bak.xsd” file.

· If xNAL.xsd (code list - option 2 (Genericode)) file under “ciq-v3\ciq\v3.0\xsd\genericode\xsd” has been changed, rename it to “xNAL-bak.xsd”. Copy “xNAL.xsd” file from “ciq-v3\ciq\v3.0\xsd\genericode\xsd” in your temporary directory to “ciq-v3\ciq\v3.0\xsd\genericode\xsd” directory of your CIQ installation. Apply the changes made to xNAL.xsd (now renamed as “xNAL-bak.xsd”) to the newly copied “xNAL.xsd” file. Delete “xNAL-bak.xsd” file.

· Replace all the files in your CIQ installation directory “ciq-v3\ciq\v3.0\spec” by copying all the files from your temporary directory ““ciq-v3\ciq\v3.0\specs”

· Delete all the files from your CIQ installation directory “ciq-v3\ciq\v3.0\supp”:

· Copy all the following from your temporary directory “ciq-v3\ciq\v3.0\supp” to your CIQ installation directory “ciq-v3\ciq\v3.0\supp”:

· Delete the directory “xAL” from your CIQ installation directory “ciq-v3\ciq\v3.0\xsd\default\doc”

· Copy the directory “xAL” from your temporary directory “ciq-v3\ciq\v3.0\xsd\default\doc” to your CIQ Installation directory “ciq-v3\ciq\v3.0\xsd\default\doc”

· Delete the directory “xAL” from your CIQ installation directory “ciq-v3\ciq\v3.0\xsd\genericode\doc”

· Copy the directory “xAL” from your temporary directory “ciq-v3\ciq\v3.0\xsd\genericode\doc” to your CIQ Installation directory “ciq-v3\ciq\v3.0\xsd\genericode\doc\”

· Go to “ciq-v3\ciq\v3.0\xsd\genericode\default\prepare” CIQ installation directory and run “prepare-default-cl.bat” (if windows) or “prepare-default-cl.sh” (if unix/linux). This will take few minutes to run and no errors should be produced.

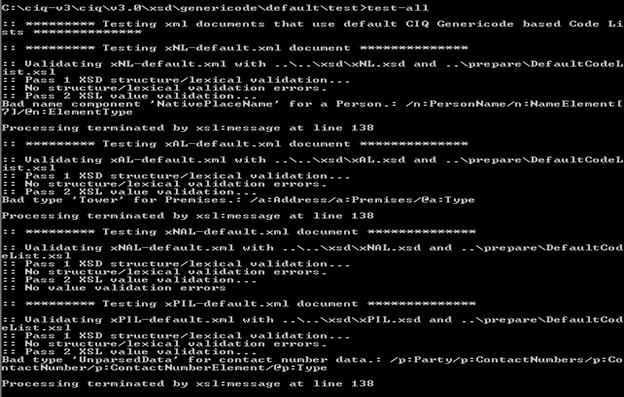

· Go to “ciq-v3\ciq\v3.0\xsd\genericode\default\test” CIQ installation directory and run “test-all.bat” (if windows) or “test-all.sh” (if unix/linux). The following output should be produced.

· Go to “ciq-v3\ciq\v3.0\xsd\genericode\customised\prepare” CIQ installation directory and run “prepare-customised-cl.bat” (if windows) or “prepare-customised-cl.sh” (if unix/linux). No errors should be produced.

· Go to “ciq-v3\ciq\v3.0\xsd\genericode\customised\test” CIQ installation directory and run “test-all.bat” (if windows) or “test-all.sh” (if unix/linux). The following output should be produced.

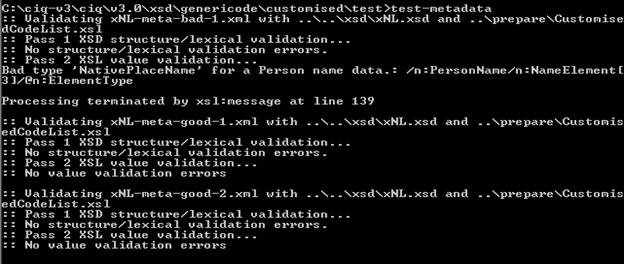

· Go to “ciq-v3\ciq\v3.0\xsd\genericode\customised\test” CIQ installation directory and run “test-metadata.bat” (if windows) or “test-metadata.sh” (if unix/linux). The following output should be produced.

A. Acknowledgements

The following individuals have participated in the creation of Change Log for OASIS CIQ V3.0 Committee Specifications and are gratefully acknowledged:

Participants:

George Farkas	XBI Software, Inc	Member, CIQ TC
John Glaubitz	Vertex, Inc	Voting Member, CIQ TC
Ram Kumar	Individual	Chair and Voting Member, CIQ TC
Graham Lobsey	Individual	Voting Member, CIQ TC
Joe Lubenow	Individual	Voting Member, CIQ TC
Michael Roytman	Vertex, Inc	Voting Member, CIQ TC
Colin Wallis	New Zealand Government	Voting Member, CIQ TC
David Webber	Individual	Voting Member, CIQ TC
Fulton Wilcox	Colts Neck Solutions LLC	Member, CIQ TC

Special thanks to members of the Emergency Management Technical Committee of OASIS (http://www.oasis-open.org/committees/emergency) for identifying this issue with xALv3.0 schema in January 2008.

B. Revision History

Revision	Date	Editor	Changes Made
V3.0 Change Log Installation	07 February 2008	Ram Kumar	Initial Version
V3.0 Change Log Installation CD 02	18 March 2008	Ram Kumar	Released as part of CIQ V3.0 Committee Draft 02
V3.0 Change Log Installation PRD 03	08 April 2008	Ram Kumar	Released as part of CIQ V3.0 Public Review Draft 03
V3.0 CS02 Change Log Installation	20 September 2008	Ram Kumar	Final Version
